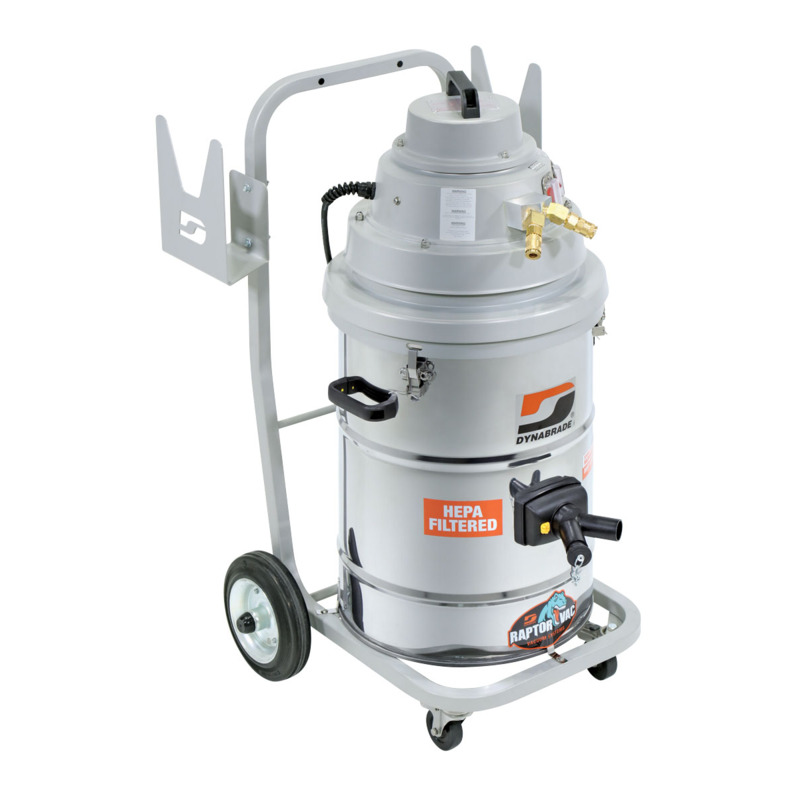

Raptor Vac Electric Portable Vacuum System
10 Gal. (38 L), 20 A, 120 V/60 Hz, Division II, N. America
-
Electric Portable Vacuum for use on non-metallic surfaces such as wood and plastics. Designed for general source capture and cleanup. Powerful suction is ideal for dry-only industrial applications. Bypass Motor System uses clean air to cool the motor and extend vacuum life. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Two additional HEPA Filters included within power-head, making it eligible for IP6X.
-
Top-quality stainless steel body and 10 gallon (38 liter) recovery tank. Unit is static-dissipating (kit included) and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide cart. Also connects to optional 61483 Cart. Dust Ignition Protected
-
CSA Group Certifications: North America<br> <br> Designed For Use In: Class II, Division 2,<br> Group F (atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust)<br> Group G (atmospheres, containing wood and plastic dusts)<br> <br> European Certifications: ATEX Third Party Certified, CE EX II 1/3 D, Ex tc IIIC T200° C Dc IP6X c T3
-
Not included Optional Conductive Cleaning Kit (96607); Vacuum Hose, 10 ft. (3 m) length, Curved handle with extension, Round brush, Crevice tool, Small & large coarse nozzle.
-
Included: Two 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines, ?Y? Connector, Two Composite Couplers, Two Vacuum Hose Swivel Adapters, Disposable Collection Bag and a Conductive Poly Liner.
| Air Pressure [Bar] (e) |
6,2
|
|---|
| Air Pressure [PSIG] (e) |
|---|
| Amps [A] (e) |
|---|
| Capacity [gal] (e) |
10
|
|---|
| Frequency [Hz] (e) |
|---|
| Height (in) (e) |
39 in
|
|---|
| Height (mm) (e) |
991 mm
|
|---|
| hp (e) |
|---|
| Length (in) (e) |
27 in
|
|---|
| Length (mm) (e) |
686 mm
|
|---|
| Series (e) |
|---|
| Sound Power dB[A] (e) |
68
|
|---|
| Voltage (e) |
120
|
|---|
| Water Static Lift (e) |
107" / 272 cm / / 267 mbar
|
|---|
| Watts (e) |
|---|
| Weight (kg) (e) |
55.34 kg
|
|---|
| Weight (lb) (e) |
122 lb
|
|---|
| Width (in) (e) |
20 in
|
|---|
| Width (mm) (e) |
508 mm
|
|---|
