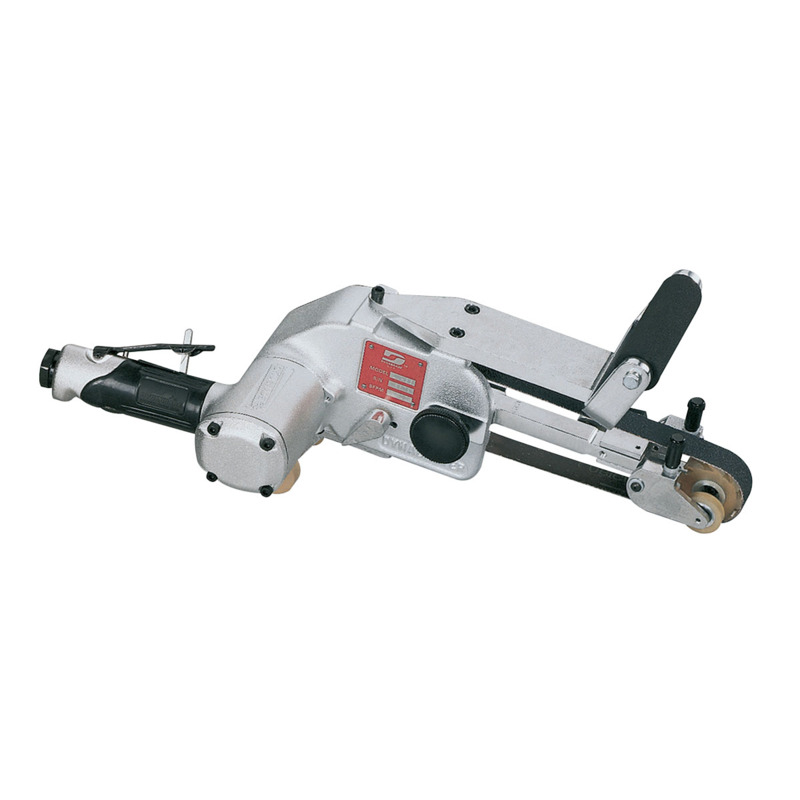

Dynabelter Accu-Grinder Abrasive Belt Tool, Heavy-Duty
1.2 hp, Right Angle, 13,000 RPM, Front Exhaust, for 1" W x 30" L (25 mm x 762 mm) Belts
-

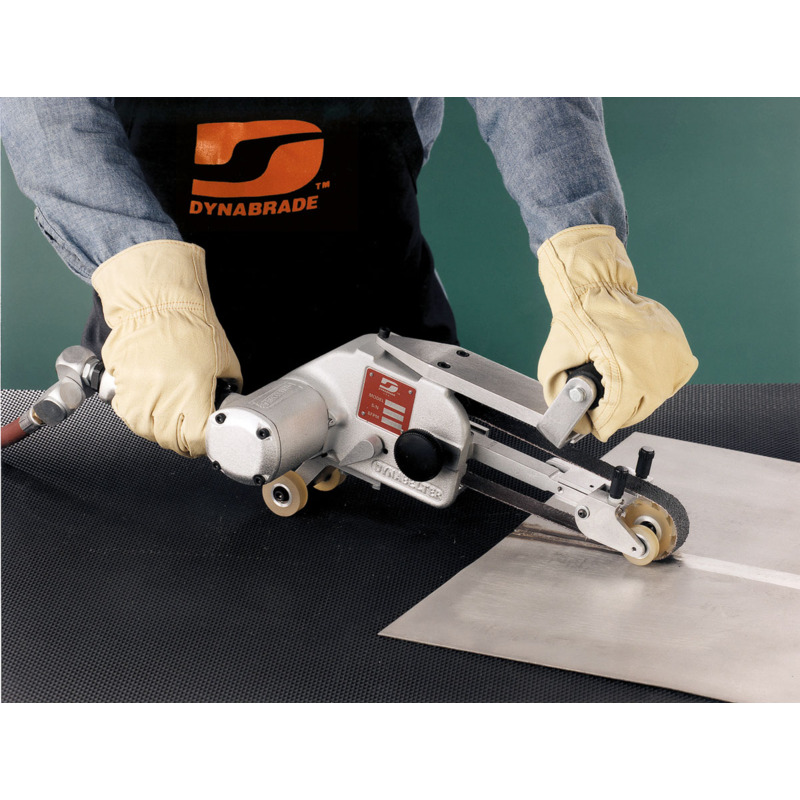

Grinds welds flat, without undercutting. Heavy-Duty, 1.2 hp model efficiently removes excess weld material and leaves narrow 'in-line' scratch pattern. This model takes the guesswork out of weld grinding, and prevents undercutting!
-
Grinds welds flat, without undercutting. Heavy-Duty, 1.2 hp model efficiently removes excess weld material and leaves narrow 'in-line' scratch pattern. This model takes the guesswork out of weld grinding, and prevents undercutting!
-
Adjustable guide tires control the depth of abrasive belt cut. Simple twist-knobs adjust depth of cut. Allows controlled grinding on flats, contours and inside/outside of pipes and tanks.
-
Adjustable guide tires control the depth of abrasive belt cut. Simple twist-knobs adjust depth of cut. Allows controlled grinding on flats, contours and inside/outside of pipes and tanks.
-
Includes 11717 Adjust-A-Wheel Contact Arm with 90-durometer standard serrated Contact Wheel, 2" diameter x 1" wide.
-
Includes 11717 Adjust-A-Wheel Contact Arm with 90-durometer standard serrated Contact Wheel, 2" diameter x 1" wide.
-
Work on Longitudinal Welds; I.D; 12" diameter pipe or larger.; O.D; 8" diameter pipe or larger.
-
Work on Longitudinal Welds; I.D; 12" diameter pipe or larger.; O.D; 8" diameter pipe or larger.
| hp |
1.2 hp
|
|---|
| Air Inlet Thread |
|---|
| Exhaust Type |
|---|
| Height (in) |
7 in
|
|---|
| Height (mm) |
178 mm
|
|---|
| Hose I.D. |
|---|
| Length (in) |
22 in
|
|---|
| Length (mm) |
559 mm
|
|---|
| Max. RPM |
13000
|
|---|
| Max. SFPM |
4220
|
|---|
| Tool Style |
Right Angle
|
|---|
| Vacuum Type |
|---|
| Weight (kg) |
4.6 kg
|
|---|
| Weight (lb) |
10.14 lb
|
|---|
| Width (in) |
13 in
|
|---|
| Width (mm) |
330 mm
|
|---|
