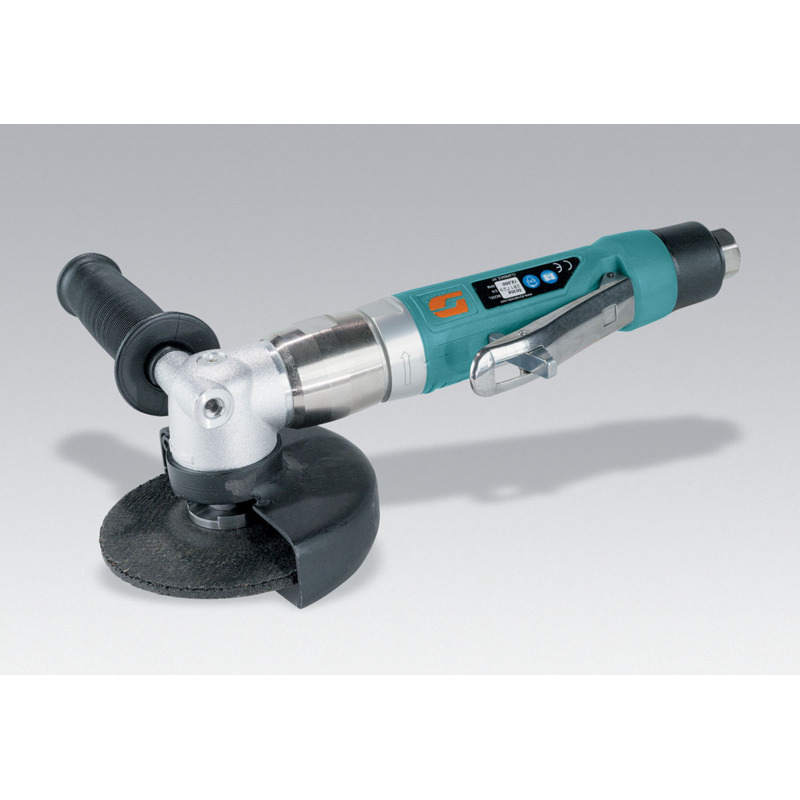

4-1/2"-5" (115-125 mm) Dia. Right Angle Depressed Center Wheel Grinder
1 hp, 12,000 RPM, Rear Exhaust, 5/8"-11 Spindle Thread
-

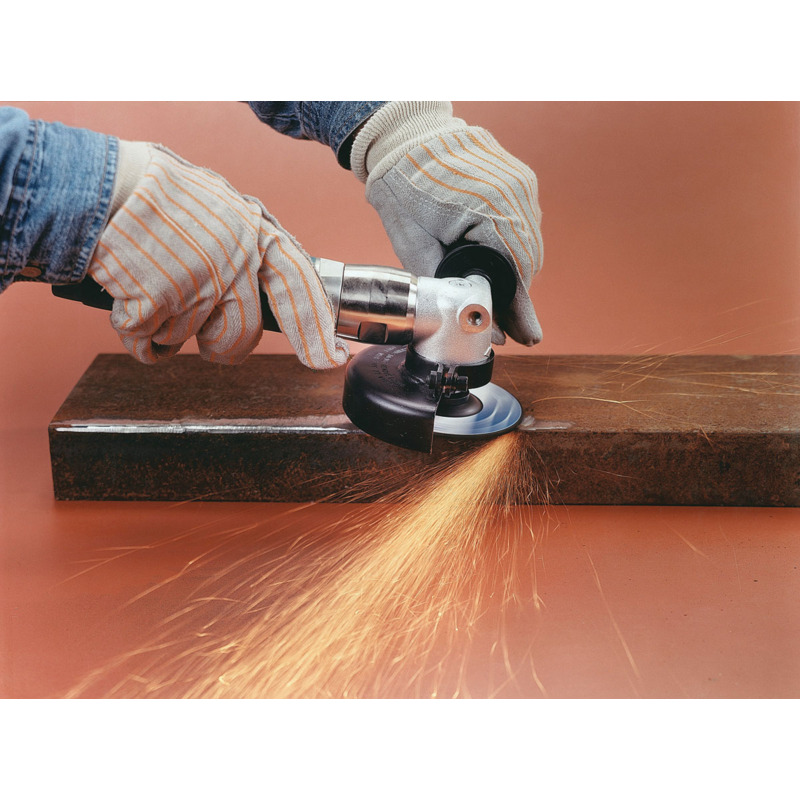

Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.
-
Depressed Center Wheel Grinder, for fast weld and stock removal, rust and scale removal, heavy deburring.
-
Accepts optional 4 1/2 - 5" diameter Type 27 Depressed Center Wheel, with 5/8" center hole (wheel width of 1/8" to 1/4").
-
Accepts optional 4 1/2 - 5" diameter Type 27 Depressed Center Wheel, with 5/8" center hole (wheel width of 1/8" to 1/4").
-
Powerful high-torque grinding action; standard muffler for reduced sound levels.
-
Powerful high-torque grinding action; standard muffler for reduced sound levels.
-
Reversible side handle for left or right hand operation.
-
Reversible side handle for left or right hand operation.
-
Includes Plug Ref. 98263
-
Includes Plug Ref. 98263
| hp |
1 hp
|
|---|
| Watts |
746 W
|
|---|
| Accy. Max. Air Flow SCFM (LPM) |
45 SCFM (1274 L/Min)
|
|---|
| Air Inlet Thread |
|---|
| Air Pressure [Bar] |
6,2
|
|---|
| Air Pressure [PSIG] |
|---|
| Exhaust Type |
|---|
| Height (mm) |
96 mm
|
|---|
| Hose I.D. |
|---|
| Length (mm) |
300 mm
|
|---|
| Max. RPM |
12000
|
|---|
| Motor Type |
|---|
| Sound Power dB[A] |
76 dB(A)
|
|---|
| Tool Style |
Right Angle
|
|---|
| Vacuum Type |
|---|
| Weight (kg) |
2 kg
|
|---|
