Ref : 52374

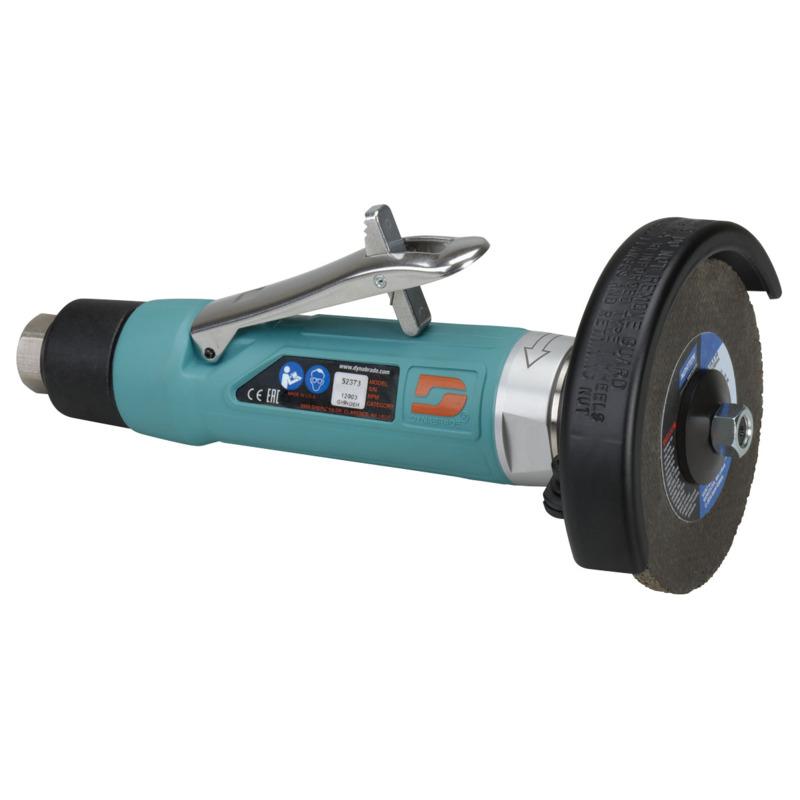

4" (102 mm) Dia. Straight-Line Type 1 Wheel Grinder

1 hp, 15,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread

Share

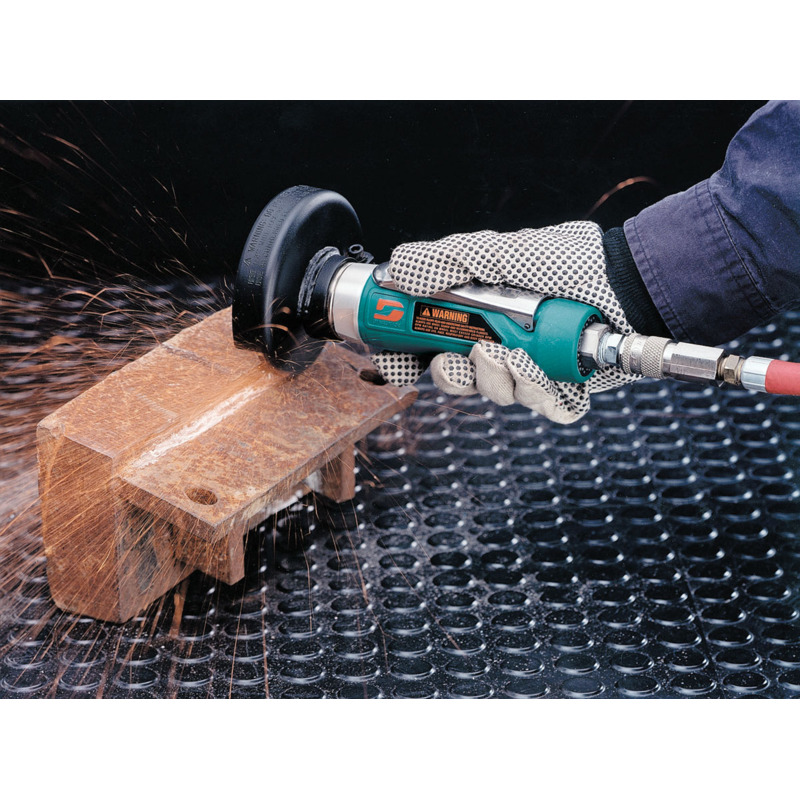

  • Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

  • Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.

  • 4" Diameter, Straight Line, 1 hp, 15,000 RPM.

  • 4" Diameter, Straight Line, 1 hp, 15,000 RPM.

  • Accepts optional 4" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/4").

  • Accepts optional 4" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/4").

  • Governor-controlled motor maintains RPM under heavy load; rear exhaust.

  • Governor-controlled motor maintains RPM under heavy load; rear exhaust.

  • Safety-lock lever is included on all models.

  • Safety-lock lever is included on all models.

hp
1 hp
Air Inlet Thread
Exhaust Type
Height (in)
5 in
Height (mm)
114 mm
Hose I.D.
Length (in)
10 in
Length (mm)
248 mm
Max. RPM
15000
Tool Style
Straight Line
Vacuum Type
Weight (kg)
1.41 kg
Weight (lb)
3.1 lb
Width (in)
7 in
Width (mm)
178 mm
Current Manual (Parts Page) PD01.71

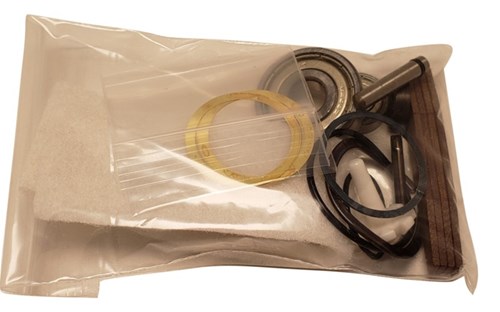

Tune-Up Kit Page 96532
Literature 00001676
