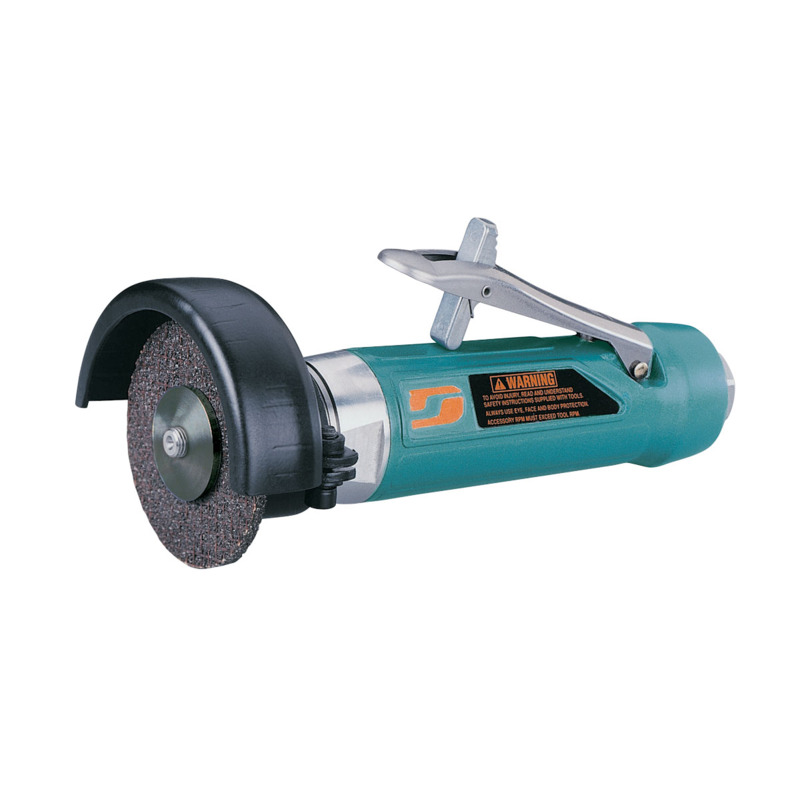

4" (102 mm) Dia. Straight-Line Cut-Off Wheel Tool

1 hp, 15,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread

Share

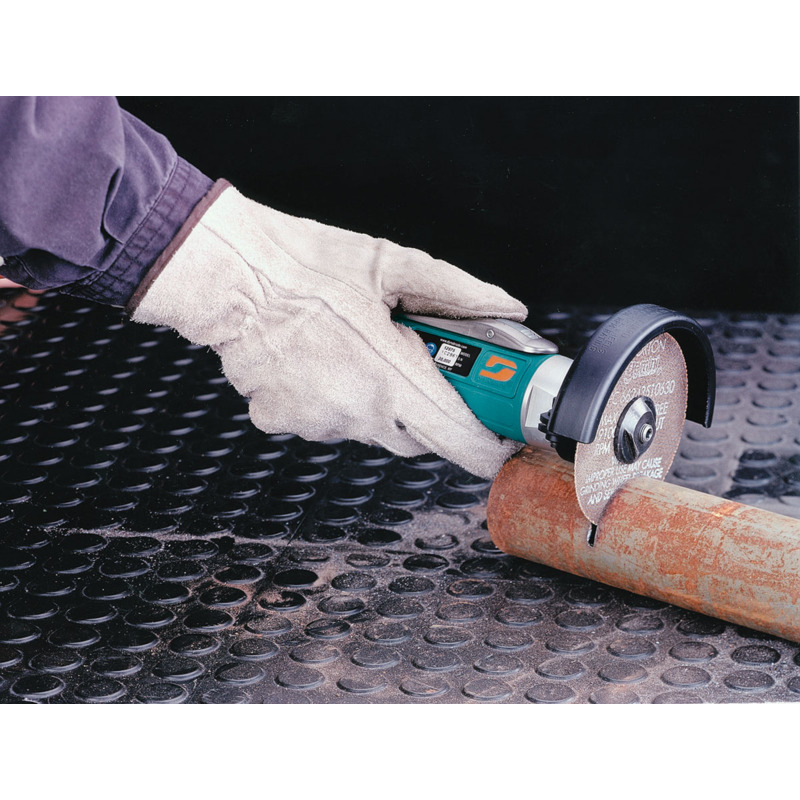

  • Cut-Off Wheel Tool, for efficient cutting of sheet metal, frame rails, clamps, bolts, etc.

  • Cut-Off Wheel Tool, for efficient cutting of sheet metal, frame rails, clamps, bolts, etc.

  • 4" Diameter, Straight Line, 1 hp, Rear Exhaust, 15,000 RPM.

  • 4" Diameter, Straight Line, 1 hp, Rear Exhaust, 15,000 RPM.

  • Model accepts 4" (102 mm) diameter Type 41 reinforced Cut-Off Wheels, with 3/8" (9.5 mm) center hole

  • Model accepts 4" (102 mm) diameter Type 41 reinforced Cut-Off Wheels, with 3/8" (9.5 mm) center hole

  • Governor controlled motor to maintain RPM under heavy load.

  • Governor controlled motor to maintain RPM under heavy load.

  • Safety-lock lever is included.

  • Safety-lock lever is included.

hp
1 hp
Air Inlet Thread
Exhaust Type
Height (in)
5 in
Height (mm)
114 mm
Hose I.D.
Length (in)
9 in
Length (mm)
238 mm
Max. RPM
15000
Tool Style
Straight Line
Vacuum Type
Weight (kg)
1.38 kg
Weight (lb)
3.04 lb
Width (in)
7 in
Width (mm)
178 mm
Current Manual (Parts Page) PD01.82
Tune-Up Kit Page 96532
Literature 00001676
