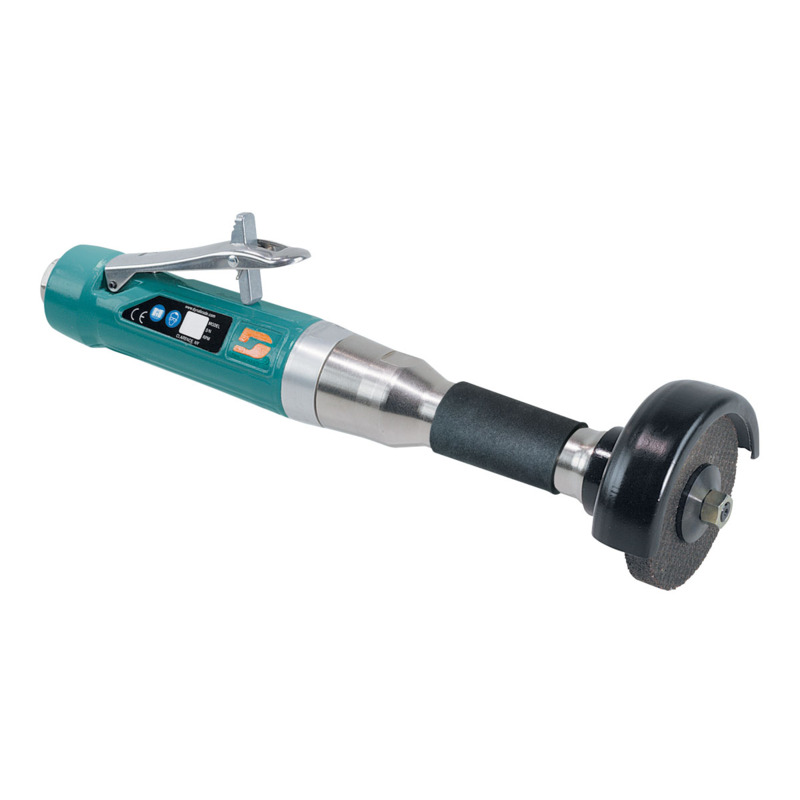

3" (76 mm) Dia. Straight-Line Type 1 Extension Wheel Grinder
1 hp, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread
-
Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
-
Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
-
3" Diameter, Straight Line, 1 hp, 6" Extension, 12,000 RPM.
-
3" Diameter, Straight Line, 1 hp, 6" Extension, 12,000 RPM.
-
Accepts optional 3" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/2"). Governor-controlled motor maintains RPM under heavy load; rear exhaust.
-
Accepts optional 3" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/2"). Governor-controlled motor maintains RPM under heavy load; rear exhaust.
-
Safety-lock lever is included on all models.
-
Safety-lock lever is included on all models.
-
Standard cushioned grip enhances operator comfort and control.
-
Standard cushioned grip enhances operator comfort and control.
| hp |
1 hp
|
|---|
| Air Inlet Thread |
|---|
| Exhaust Type |
|---|
| Height (in) |
4 in
|
|---|
| Height (mm) |
89 mm
|
|---|
| Hose I.D. |
|---|
| Length (in) |
11 in
|
|---|
| Length (mm) |
286 mm
|
|---|
| Max. RPM |
12000
|
|---|
| Tool Style |
Straight Line
|
|---|
| Vacuum Type |
|---|
| Weight (kg) |
1.76 kg
|
|---|
| Weight (lb) |
3.87 lb
|
|---|
| Width (in) |
6 in
|
|---|
| Width (mm) |
152 mm
|
|---|
